Ninkear L20: A Tiny AI Mini PC With Intel Core Ultra 5 and Arc Graphics

Wednesday, 19 August 2026 at 04:02

Mini PCs have come a long way from being simple low-power computers designed primarily for web browsing and office work. The Ninkear L20 is a good example of this evolution, packing Intel's modern Core Ultra platform, dedicated AI acceleration, and Arc graphics into an extremely compact 0.66-liter chassis.

Under the hood, the Ninkear L20 is powered by the Intel Core Ultra 5 226V, an 8-core, 8-thread processor with boost speeds of up to 4.5GHz. It also features Intel Arc 130V integrated graphics and an Intel AI Boost NPU, delivering up to 97 TOPS of combined AI performance.

Despite measuring only 129 × 129 × 43mm, the L20 offers a surprisingly complete selection of ports, support for three displays, 2.5Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3, and two M.2 SSD slots.

Intel Core Ultra 5 226V Brings Lunar Lake To A Tiny PC

One of the major highlights of the Ninkear L20 is its Intel Core Ultra 5 226V processor. The chip features eight cores and eight threads, with a base frequency of 2.1GHz and boost speeds reaching 4.5GHz. It is manufactured using TSMC's N3B process and has a 17W TDP according to Ninkear's specifications.

For a mini PC, this is an appealing combination. Rather than using a high-power desktop processor that would require a much larger cooling system, the L20 uses a platform designed around efficiency.

That makes the Core Ultra 5 226V particularly well suited to a machine that is only 43mm thick.

The L20 should therefore have little trouble handling everyday productivity, web browsing, office applications, programming, multimedia, and other workloads that traditionally required a much larger desktop.

Intel Arc 130V Graphics

The processor is paired with Intel's Arc 130V GPU, giving the L20 substantially more graphics capability than the basic integrated graphics found in many inexpensive mini PCs.

The Arc 130V features seven Xe cores and operates at up to 1.85GHz. This makes the L20 more versatile than a conventional office mini PC. It can handle creative applications, multimedia workloads, hardware-accelerated video processing, and 1080p gaming in appropriate titles and settings.

Naturally, buyers should keep expectations realistic. This is still an integrated GPU sharing system memory, rather than a dedicated graphics card. The L20 is not designed to replace a gaming desktop with a discrete GPU.

However, the combination of Lunar Lake and Arc graphics makes it an interesting machine for users who want a compact computer that can do more than run Windows and office applications.

97 TOPS Of AI Performance

AI is one of the biggest selling points of the Ninkear L20. The Core Ultra 5 226V includes Intel AI Boost, a dedicated NPU designed to accelerate compatible artificial intelligence workloads locally. According to Ninkear, the complete platform can deliver up to 97 TOPS of AI performance.

The advantage of having dedicated AI acceleration is that compatible workloads don't always need to rely exclusively on the CPU or GPU.

That can be useful for applications involving image processing, audio processing, productivity features, generative AI, and other local AI workloads. The L20 is also marketed with Copilot+ PC support, putting it firmly in the newer generation of AI-focused Windows PCs.

For users concerned about privacy, local AI processing can also be attractive because compatible tasks can potentially be performed directly on the PC rather than requiring every operation to be sent to a remote cloud service.

16 GB of Fast Memory

Ninkear offers the L20 with 16GB of LPDDR5X memory, paired with either a 512GB or 1TB PCIe 3.0 SSD. The 16GB configuration should be enough for typical productivity, browsing, programming, multimedia, and general-purpose use. It also gives the integrated Arc GPU a reasonable amount of system memory to work with.

The more interesting upgrade path is storage. The L20 includes two M.2 2280 SSD slots, with one occupied by the factory SSD. This means users can add another NVMe drive without replacing the original storage.

That is a useful feature for anyone planning to use the L20 as a media center, home server, development machine, emulation system, or compact gaming PC.

Triple-Display Workstation

For productivity, the Ninkear L20 is surprisingly well equipped. The system can drive up to three displays through its combination of HDMI, DisplayPort, and USB4 connectivity.

Its video outputs include:

HDMI 2.1
HDMI 1.4
DisplayPort 1.4
USB4

The HDMI 2.1 output supports up to 4K at 120Hz or 8K at 60Hz, according to Ninkear, while HDMI 1.4 supports up to 4K at 30Hz.

This makes the L20 particularly appealing as a small workstation. A user can keep the computer almost completely hidden while running a multi-monitor setup from a machine that occupies very little desk space.

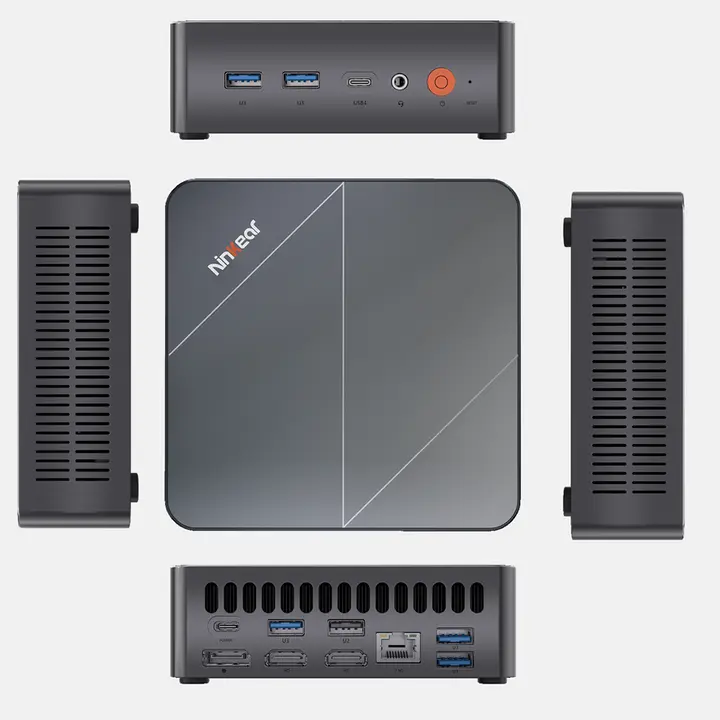

A Surprisingly Complete Selection Of Ports

Ninkear has also avoided the common problem of making a mini PC physically small at the expense of connectivity.

The L20 includes:

1× USB4
4× USB 3.2 Gen 1, 5Gbps
1× USB 3.2 Gen 2, 10Gbps
1× USB 2.0
1× HDMI 2.1
1× HDMI 1.4
1× DisplayPort 1.4
1× 2.5Gbps Ethernet
1× 3.5mm audio jack
1× USB-C power connector

There is enough connectivity here to use the L20 as a full desktop replacement without immediately needing a USB hub. The inclusion of USB4 is particularly useful for high-speed peripherals and modern docking solutions.

2.5Gbps Ethernet And Wi-Fi 6

The networking hardware is also well suited to a modern home or office. The L20 includes 2.5Gbps Ethernet, allowing considerably faster wired network transfers than traditional Gigabit Ethernet when paired with compatible networking equipment.

Wireless connectivity comes from Wi-Fi 6, while Bluetooth 5.3 handles wireless peripherals and accessories.

For users with a NAS or fast local network, the 2.5Gbps Ethernet connection could be especially useful.

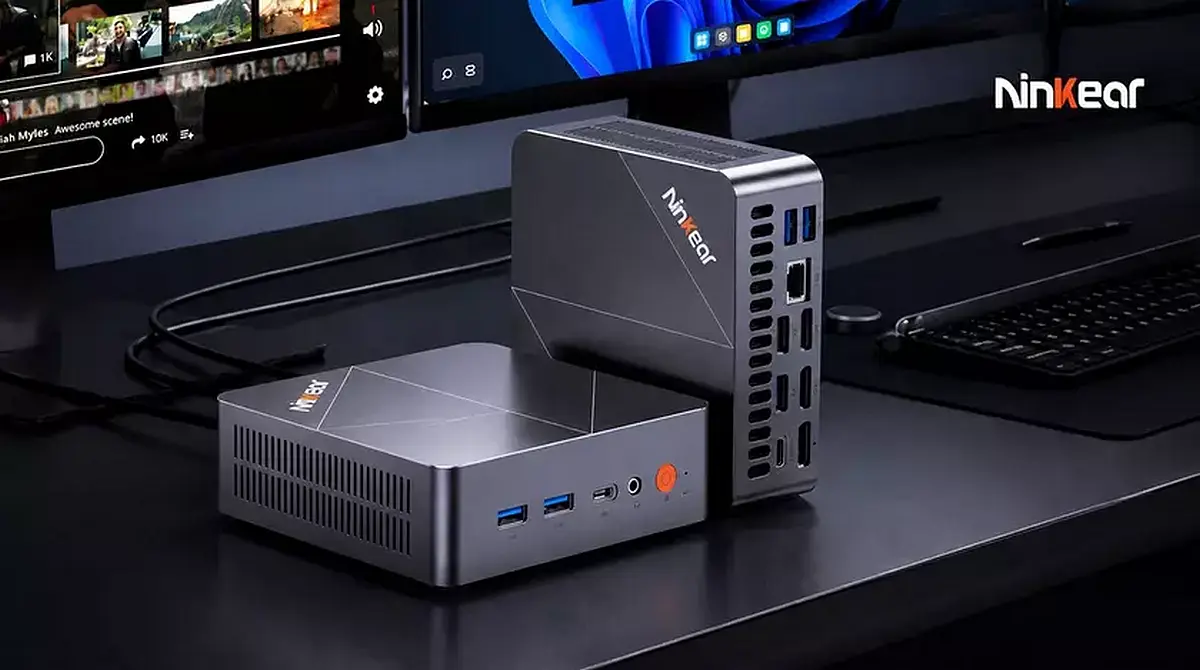

Tiny 0.66-Liter Chassis

Perhaps the most impressive aspect of the L20 is simply its size. The machine measures only 129 × 129 × 43mm, giving it a volume of approximately 0.66 liters.

It weighs 625 grams, making it small enough to disappear behind a monitor or sit unobtrusively on a desk. Ninkear also supports VESA mounting, allowing the L20 to be attached to the back of a compatible monitor.

That makes the computer particularly attractive for businesses, reception desks, offices, digital signage, and home users who want a clean workspace.

100W Power Adapter

The L20 is powered by a 20V/5A adapter, providing up to 100W. Considering the Core Ultra 5 226V's relatively low power characteristics, this is a sensible power solution for a computer of this size.

It also means the L20 can remain considerably smaller than a conventional desktop while still providing enough power headroom for its processor, integrated graphics, storage, memory, and connected peripherals.

Who Is The Ninkear L20 For?

The Ninkear L20 makes the most sense for someone who wants desktop-class versatility without a desktop-sized computer.

It could work particularly well as:

A compact office workstation
A programming and development PC
A multi-monitor productivity system
A home theater PC
A media server
A compact emulation machine
A lightweight gaming PC
A secondary computer
A home or small-business server
An AI-capable Windows PC

Its integrated Arc graphics also give it considerably more flexibility than the typical low-end mini PC.

An Impressive Mini PC

The Ninkear L20 is an impressive example of just how much computing power can now fit inside a machine measuring only 129 × 129 × 43mm.

The combination of the Intel Core Ultra 5 226V, Arc 130V graphics, Intel AI Boost NPU, 16GB LPDDR5X memory, dual M.2 storage support, USB4, 2.5Gbps Ethernet, and triple-display capability gives the L20 a remarkably complete feature set.

Its biggest appeal is not necessarily raw performance. Instead, it is the combination of performance, efficiency, connectivity, and size.

At around 0.66 liters, the Ninkear L20 can serve as a full Windows workstation while taking up less space than many desktop accessories.

Key Specs Summary

Processor: Intel Core Ultra 5 226V, 8 cores / 8 threads, up to 4.5GHz
GPU: Intel Arc 130V, 7 Xe cores, up to 1.85GHz
AI: Intel AI Boost NPU, up to 97 TOPS combined AI performance
Memory: 16GB LPDDR5X
Storage: 512GB / 1TB PCIe 3.0 SSD
Expansion: 2× M.2 2280 SSD slots
Display: Up to 3 displays
Video: HDMI 2.1, HDMI 1.4, DisplayPort 1.4, USB4
Networking: 2.5Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3
USB: 1× USB4, 1× USB 3.2 Gen 2, 4× USB 3.2 Gen 1, 1× USB 2.0
Size: 129 × 129 × 43mm
Volume: Approximately 0.66 liters
Weight: 625g
Power: 100W (20V/5A)
Mounting: VESA support
OS: Windows / Copilot+ PC support

The Arc 130V is what makes the L20 more interesting than a typical office mini PC. While it obviously cannot compete with a desktop equipped with a dedicated GPU, seven Xe cores give this tiny machine enough graphics capability to venture into 1080p gaming and emulation without immediately requiring an external graphics solution.
